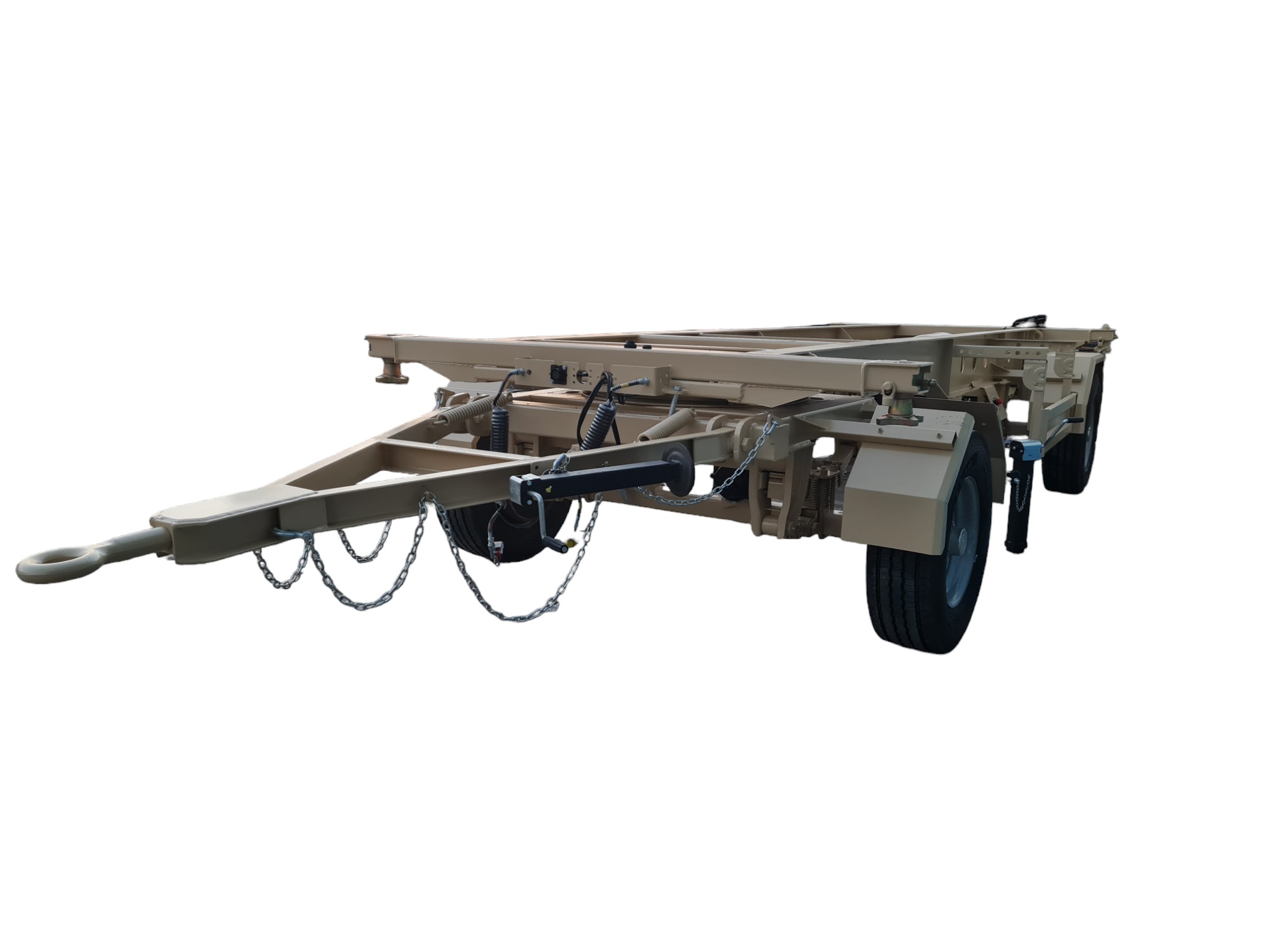

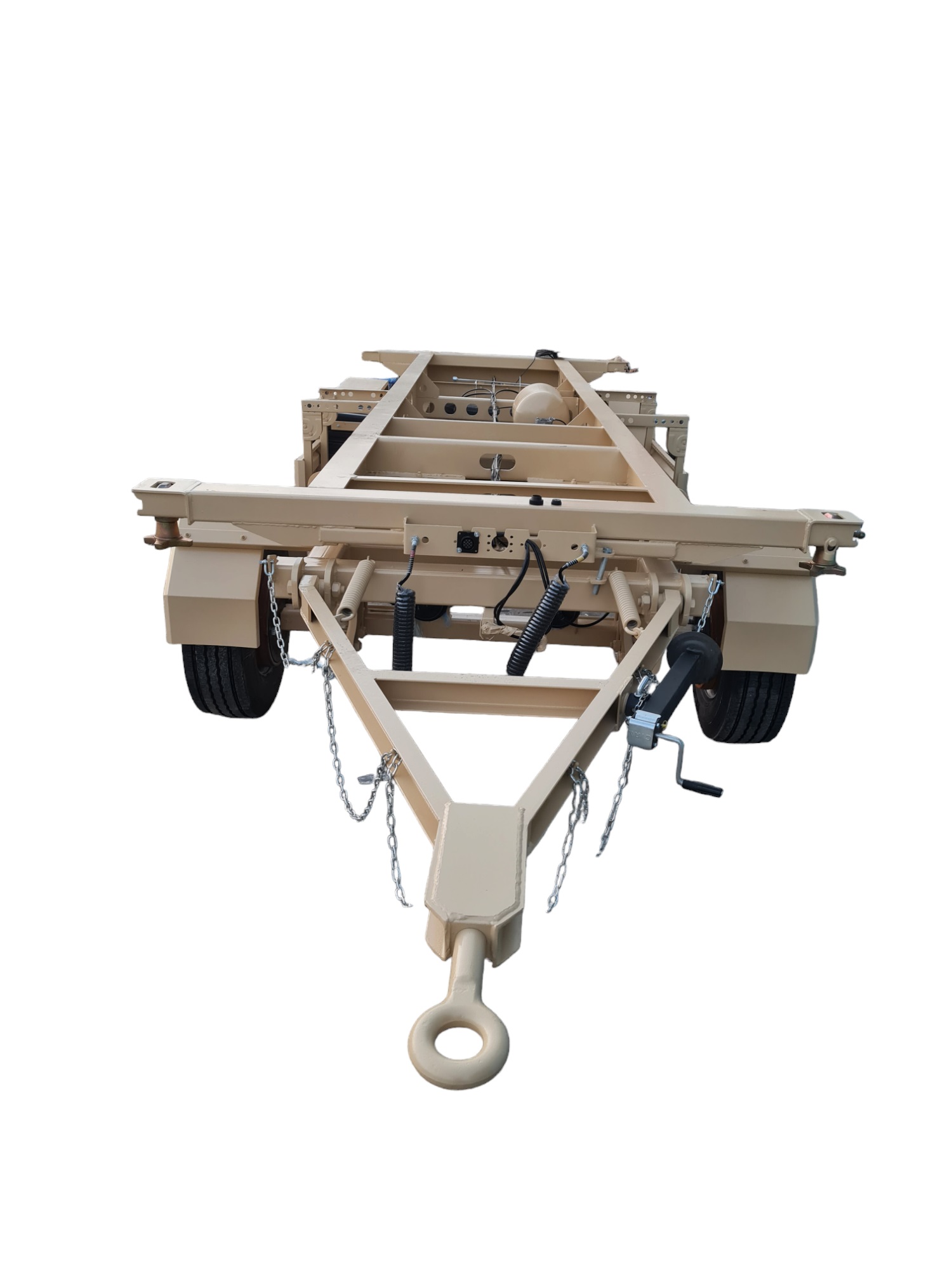

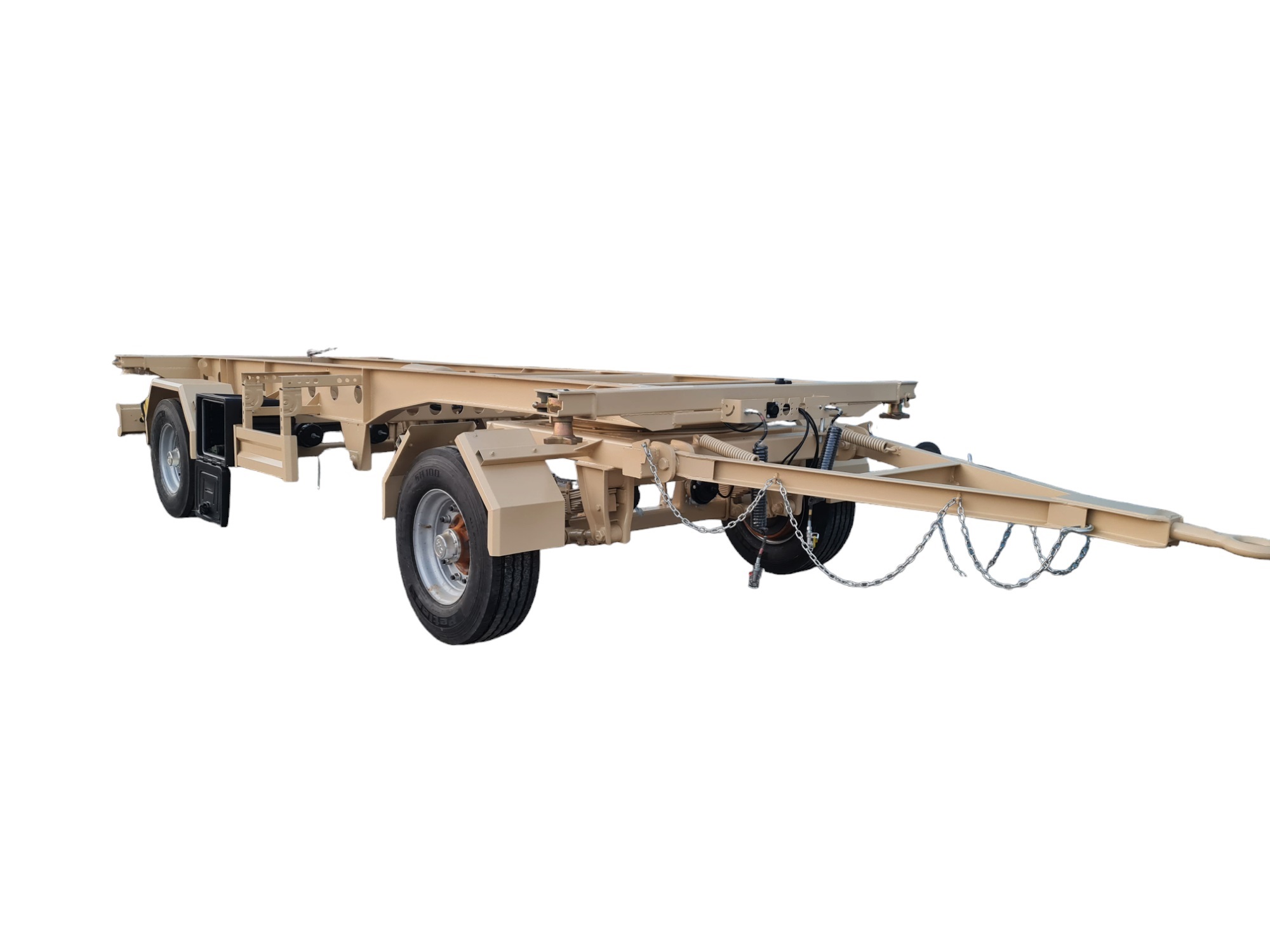

Product Description
Our company offers the 20 DC Container Transport Trailer, designed for military and industrial logistics operations. Built with high-strength materials and compliant with international standards, this trailer ensures safe and efficient container transport under all terrain conditions.
Technical Specifications
- Maximum Loaded Weight: 10,000 kg
- Axle Configuration: Dual axle (front and rear)
- Front Axle: 360° rotatable for enhanced maneuverability
- Chassis Type: Fishbone-type container chassis
- Container Dimensions:
- Width: 2,438 mm
- Length: 6,058 mm
- Height: 2,591 mm
- Performance:
- Average 60 km/h on asphalt roads
- Average 30 km/h on stabilized/unpaved roads
- Capable of operating at 20% lateral and 30% longitudinal inclines with loaded container and equipment
• Brake System: Air brake system powered by towing vehicle
• Parking Brake: Mechanical hand brake system
• Suspension: Leaf-spring type suspension
• Standards Compliance:
• Turkish Highway Traffic Regulation, Article 3 – O3 class (full trailer)
• Article 128 – Dimensions and weight standards
• ISO 1161 and TSE-certified container lock system (4-point)
Safety and Equipment
• Secure container locks, resistant to accidental opening during movement
• Manual release option for ground use when required
• 4 wheel chocks for short stops
• 2 safety chains (Grade 80, 10 mm) attached to drawbar for secure towing
Coating
- Double epoxy primer
- Acrylic topcoat finish
