TECHNICAL SPECIFICATIONS
MAXIMUM PERMISSIBLE GROSS WEIGHT: 1350 kg [Payload + Trailer]
AXLE GROUP:
- Single 1350 kg rubber torsion axle with overrun brake (1x1350 kg)
DRAWBAR:
- V-type drawbar
- 750–1350 kg overrun coupling (V-type)
- 750–1500–1600 kg braked, height-adjustable drawbar
BRAKE SYSTEM:
- Mechanical overrun brake / Unbraked options
- Handbrake / Parking brake
JOCKEY WHEEL:
- Heavy-duty jockey wheel: Ø 60 mm / 250 kg capacity
- Automatic folding jockey wheel: 250 kg capacity
- Mechanical jockey wheel: Ø 48 mm with clamp / 150 kg capacity
PARKING JACKS / STABILIZERS:
- Swivel stabilizer jack: 1000 kg capacity
CHASSIS:
- Main chassis: Custom-formed ST52 high-strength steel sheet
- Sub-frame: Custom-formed ST52 high-strength steel sheet
ELECTRICAL SYSTEM:
- 7/13-Pin wiring harness complying with SAE standards and highway regulations
- Dual voltage electrical system: 12V / 24V
FLOORING / DECKING:
- Anti-slip phenolic plywood: 10 mm – 18 mm thickness
- Aluminum checker plate: 2/3 mm – 3/4 mm thickness
COATING & SURFACE TREATMENT:
- 2 layers of epoxy primer followed by topcoat paint
- Hot-dip galvanizing (HDG)
TYRES AND RIMS:
- 175/70 R13
- 185 R14C
- 195 R14C
- 195/50 R13C
- Speed Rating / Limit: 100 km/h

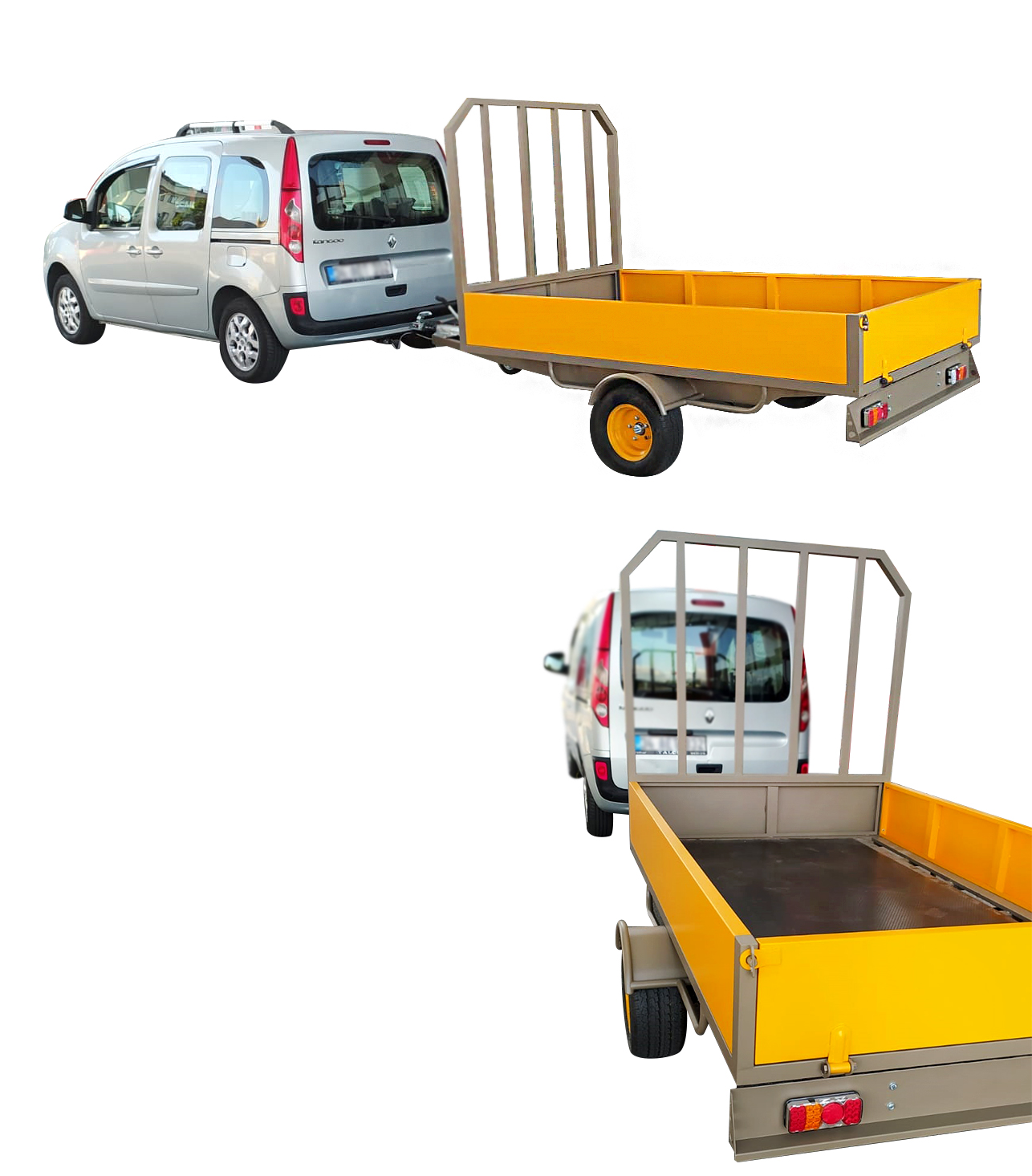

SUPERSTRUCTURE:
- Open cargo bed / Dropside body
ACCESSORIES:
- Impact-resistant single mudguards (Plastic / Metal options)
- Rear underrun protection bumper
- Flush-mounted floor lashing rings
- Side panel/dropside fastening toggles
- Cargo area tie-down hooks
OPTIONAL EQUIPMENT:
- Hydraulic shock absorbers
- Spare wheel carrier
- Wheel chocks
- Plastic water tank
- Tool box
- Mechanical stabilizer jacks
- Wheel lug wrench
EQUIPMENT BRAND OPTIONS:
- AL-KO / KNOTT / WAP / SPP
HOMOLOGATION / CERTIFICATION:
- O2 Category Type Approval Certification
LOADING AREA DIMENSIONS:
