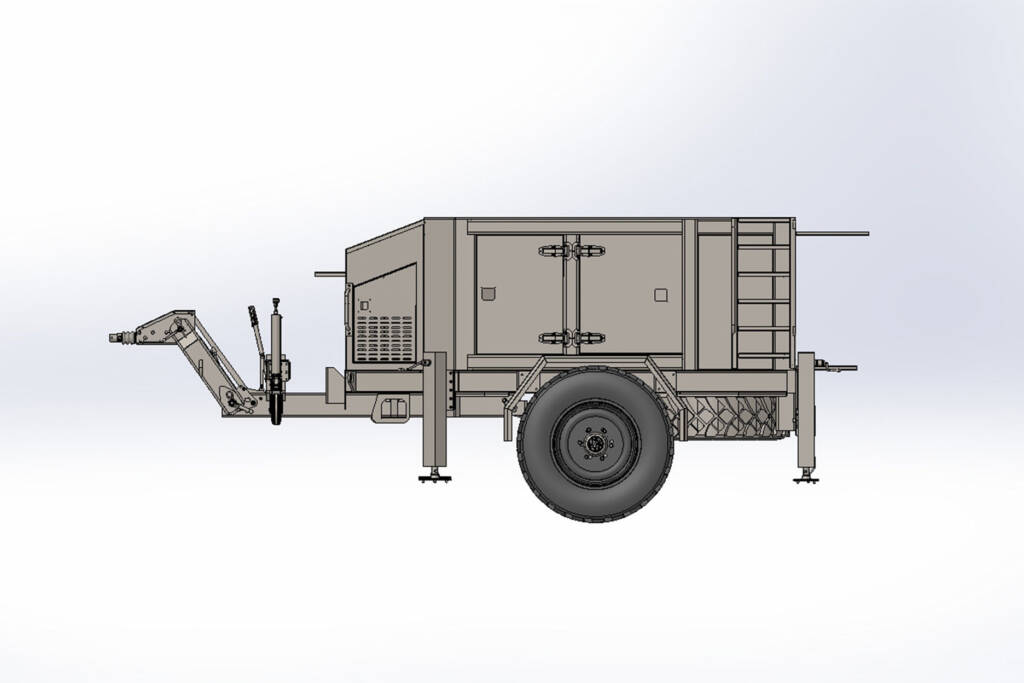

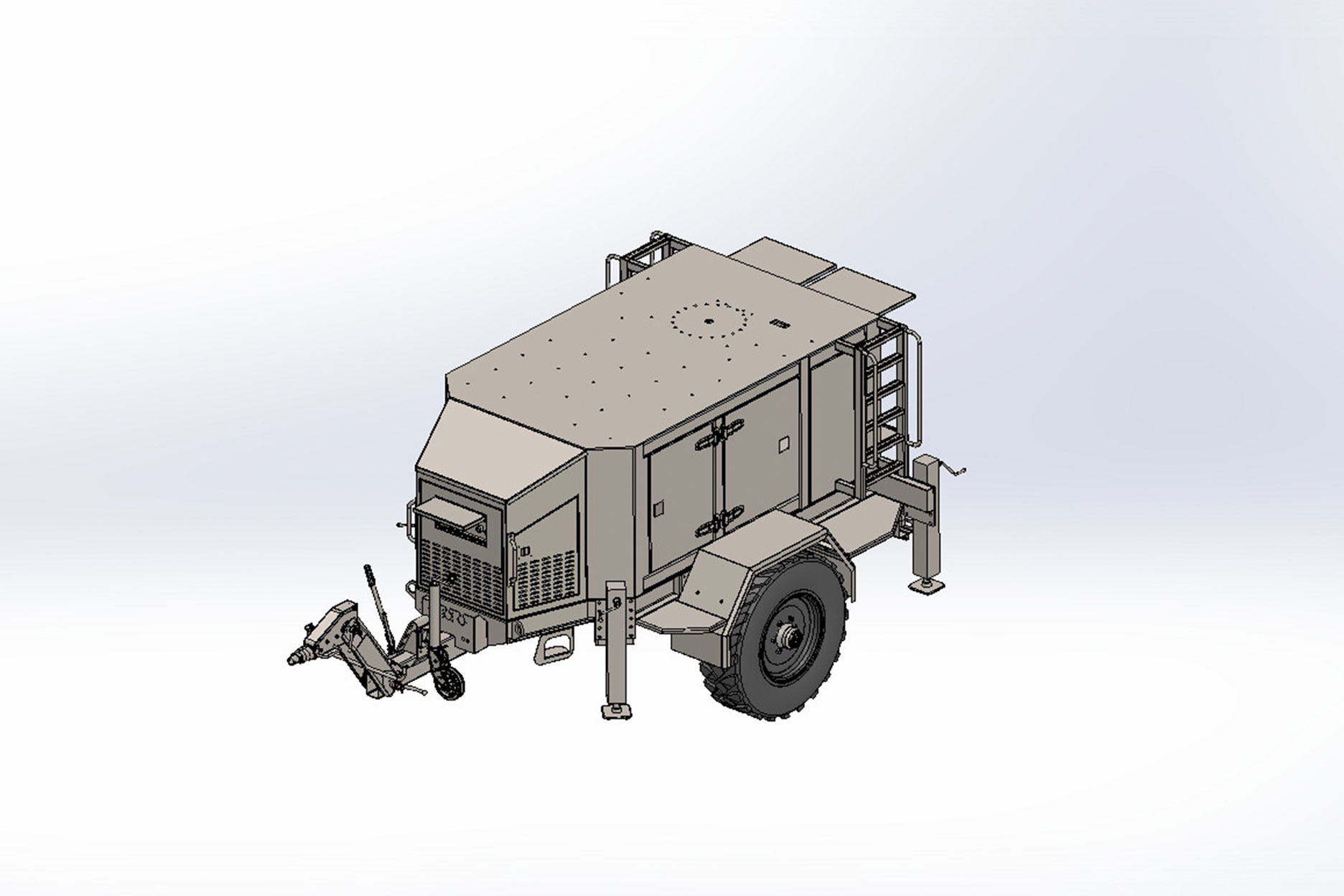

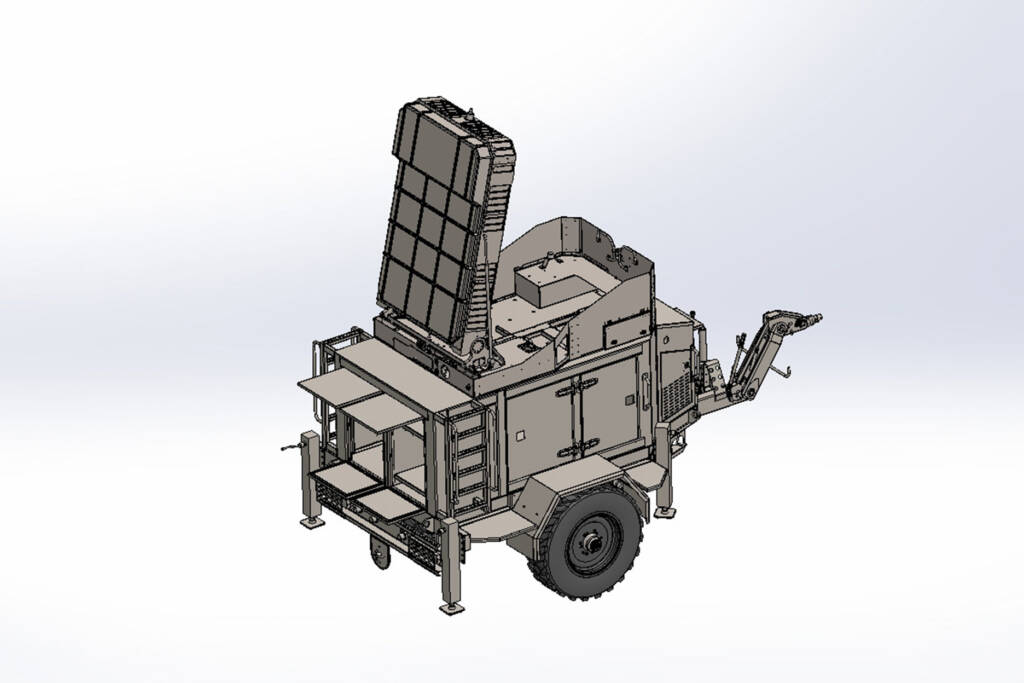

NATO-Type Military Full Trailer – Technical Specifications
Main Technical Features
Maximum Loaded Weight: 3500 kg
Axle: 3500 kg capacity,, leaf-spring suspension
Drawbar: 3500 kg, height-adjustable
Support Systems: Mechanical support wheel, 500 kg capacity
4 mechanical support legs, vertical positioning
Coupling: NATO ring drawbar head (NATO76-4101 standard)
Tires: 285/75R 19.5 with rims (2+1 spare)
Coating: Double epoxy primer + acrylic topcoat
Chassis Dimensions: Width 2,450 mm, Length 3,500 mm
Electrical and Lighting Equipment;
NATO-type electrical set (24VDC)
Military stop lamps (right/left, 24VDC) – 2 units
Military convoy cross lamp (24VDC) – 1 unit
Military license plate lamp (24VDC) – 1 unit
Military side position lamps (24VDC) – 4 units
Military fog lamp (24VDC) – 1 unit
Military reverse lamp (24VDC) – 1 unit
Military male plug (12-pin, 24VDC) – 2 units
Military female plug (12-pin, 24VDC) – 1 unit
Spiral cable (24VDC, 12x1) – 1 unit
Structural Components
Metal single mudguard – 2 units
Spare wheel holder – 1 unit
Wheel chocks – 2 units
Lifting lugs for crane/helicopter – 4 units
RORO rings for air and land transport – 4 units
Accessories;
Tool box (50 L, metal) – 1 unit
Warning triangle reflector – 1 unit
Fire extinguisher (2 kg) – 2 units
