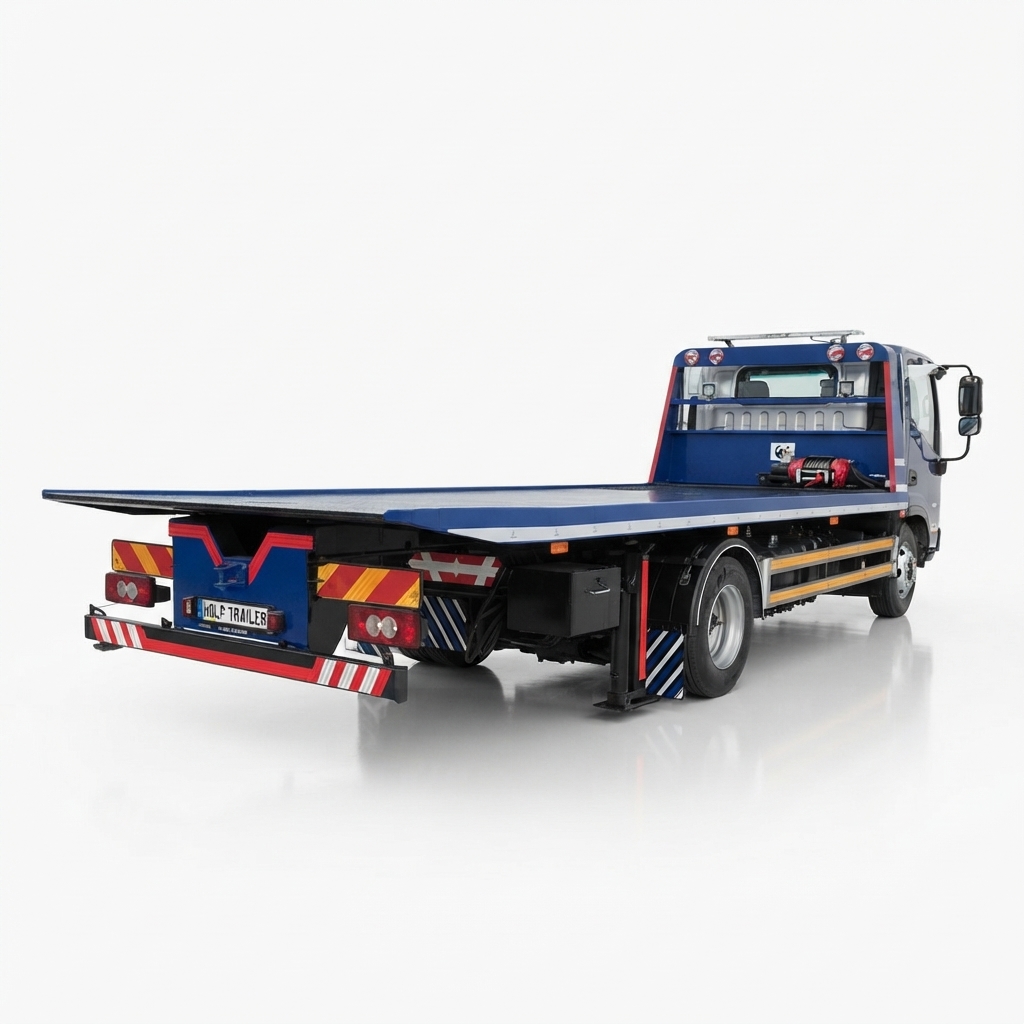

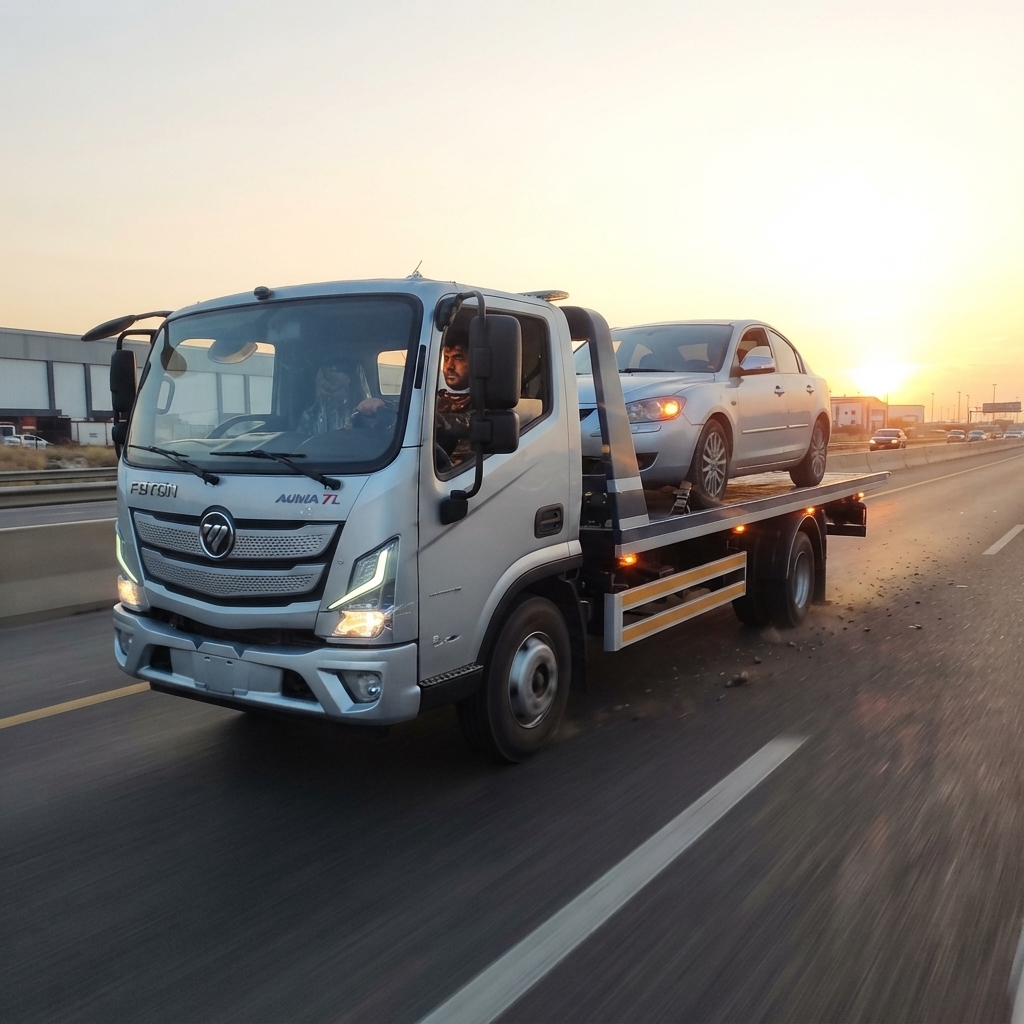

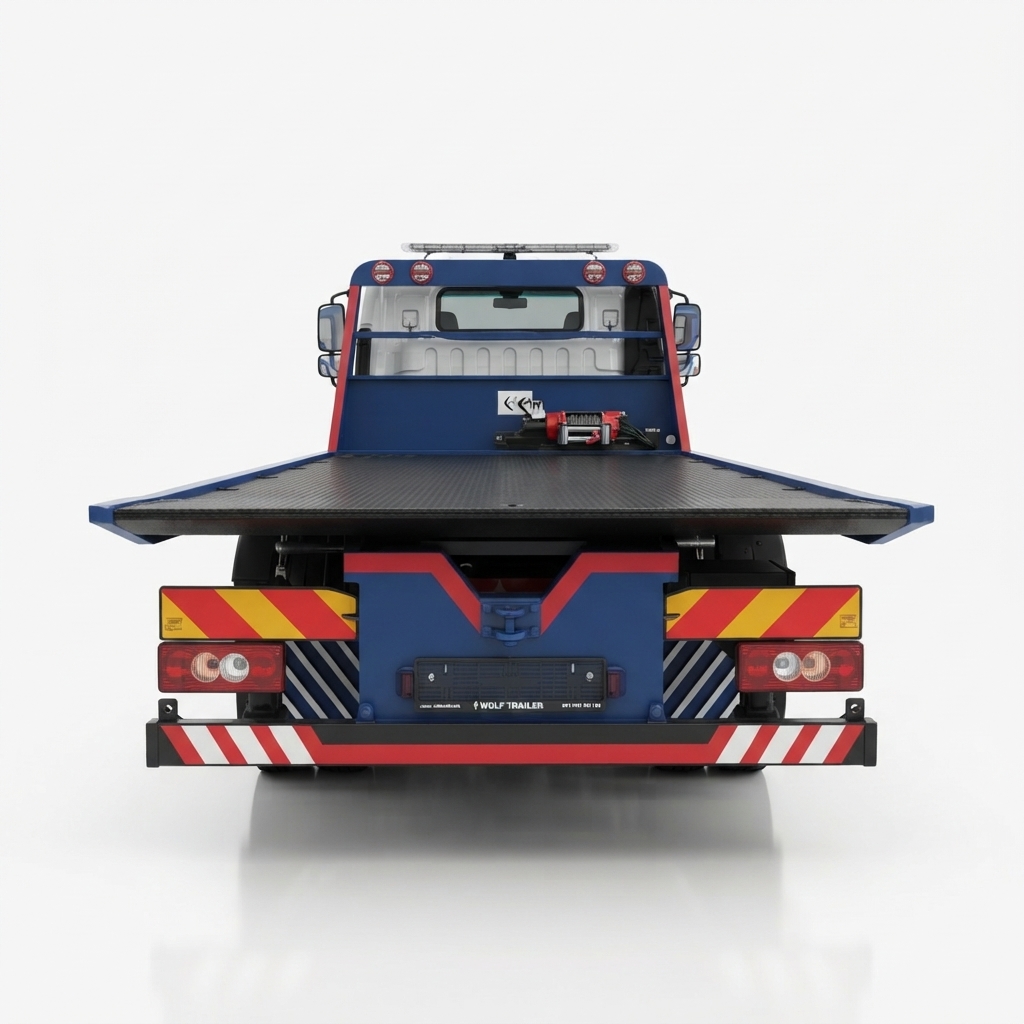

Technical Specifications & Features
-
Platform Dimensions: Width: 2,100 mm | Length: 5,000 mm (Optimized footprint for commercial vehicles and heavy machinery).
-
Deck Flooring: High-impact, wear-resistant Hardox steel plate for long-term abrasion resistance against tracks and heavy wheels.
-
Hydraulic Winch Unit: 5,000 kg pull-capacity KMS heavy-duty hydraulic winch fitted with a 24-meter steel wire rope.
-
Winch Positioning: Integrated left-to-right lateral sliding winch frame (Sağ ve sol kayarlı vinç) for angled recovery pulls.
-
Rear Stabilization: Heavy-duty rear hydraulic drop-down stabilizer legs (arka basma ayakları) for frame anti-tipping balance during tilt operation.
-
Control Systems: Dual operation via a wireless remote control unit and a backup side-mounted manual hydraulic control lever panel.
-
Safety & Accessories: Includes 2x heavy-duty wheel chocks (takoz) with quick-lock chassis mounting brackets.
-
Surface Coating & Paint: Anti-corrosive system comprising 2 coats of heavy-duty epoxy primer followed by a high-gloss matte protective acrylic topcoat.
